Support Documentation: IntegrationSakai How to Create an LTI Link2. Configure External Learning Tool (Administrator)

2. Configure External Learning Tool (Administrator)

Step 1: Edit the External Tool

Step 1: Edit the External Tool

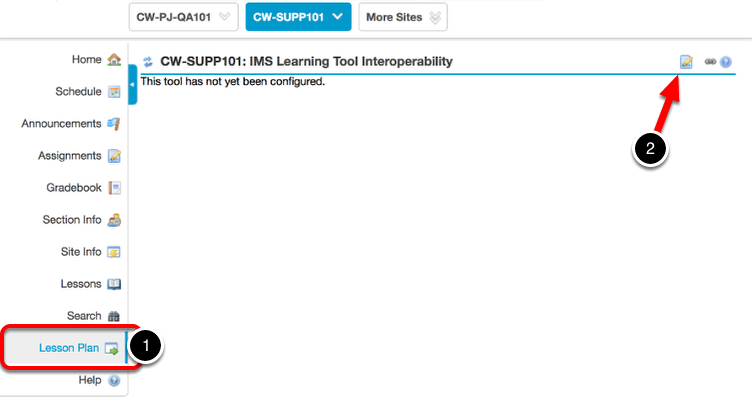

1. Locate and Click on the external learning tool that you have created in your course.

2. Click on the Edit icon.

Step 2: Configure the External Tool

Step 2: Configure the External Tool

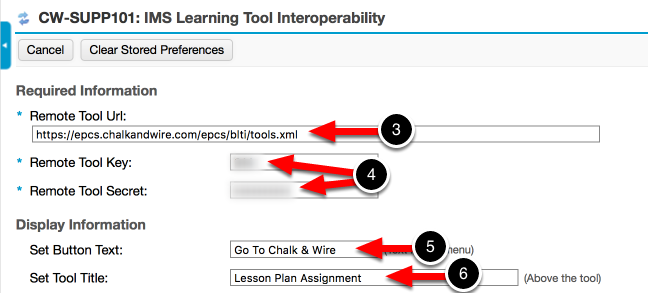

3. Enter the Remote Tool URL. Please use the text below:

https://epcs.chalkandwire.com/epcs/lti/tool.xml

4. Enter the Remote Tool Key and the Remote Tool Secret. This information will be provided to you by Chalk & Wire.

5. Set the Button Text. This is what will appear on the button that links to Chalk & Wire.

6. Set the Tool Title. This will appear above the tool.

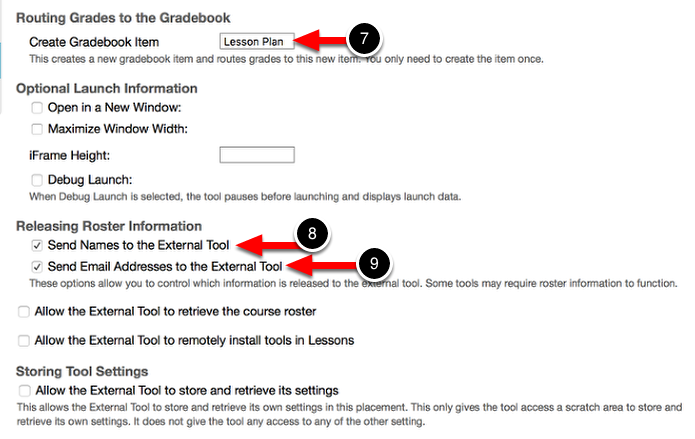

7. Create the Gradebook Item. This will create a new gradbok item and route grades to the item.

8. Select the option to Send Names to the External Tool.

9. Select the option to Send Email Addresses to the External Tool.

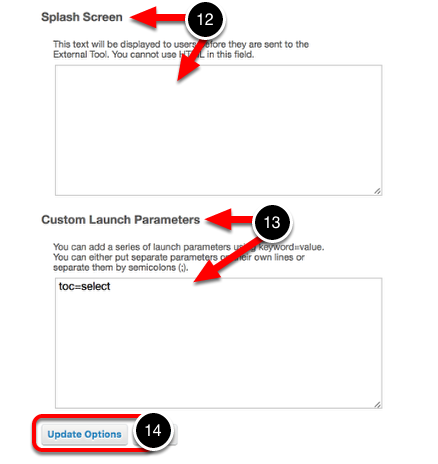

12. Select text for the Splash Screen. This information will be displayed to users as they are being sent to the external tool.

13. Enter the Custom Parameters. Use the text below:

If you would like to use this Placement in an assignment where the TOC ID is used as part of the title in the Assignment Link, and the student ID is included in the launch parameters, enter:

lis_person_sourcedid=@X@user.batch_uid@X@

If you would like to use this Placement in an assignment where the TOC is selected from a drop-down menu, and the student ID is included in the launch parameters, enter:

toc=select
lis_person_sourcedid=@X@user.batch_uid@X@

If you would like to use this Placement in an assignment that does NOT link to a TOC but instead links to an actual assignment in Chalk & Wire, enter:

toc=assignment

14. Click Update Options.

Step 3: Select Table of Contents Section

Step 3: Select Table of Contents Section

A Department and a Table of Contents OR Assignment drop-down will appear. These drop-down menus will be populated by your Chalk & Wire site.

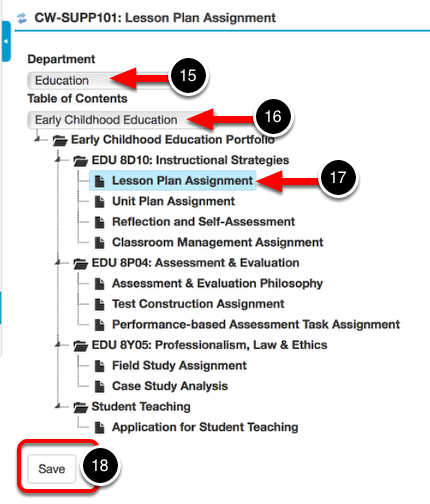

15. Select the Department that contains the table of contents or assignemnt to populate the next drop-down menu.

16. Select the Table of Contents or Assignment from the drop-down menu.

17. If you are linked to a Table of Contents, select the Table of Contents Section that corresponds to the Assignment Link that you've created.

18. Click Save.
