Support Documentation: IntegrationMoodle How to Set Up an LTI Link2. Add LTI Link to the Course (Administrator)

2. Add LTI Link to the Course (Administrator)

Once you have configured Chalk & Wire as an LTI tool, Assessors will be ready to add the assignment link to your course in Blackboard. Once the assignment has been added, Moodle users will be able to use it to link to Chalk & Wire to complete their work.

Step 1: Access Courses

Step 1: Access Courses

Using the Navigation panel,

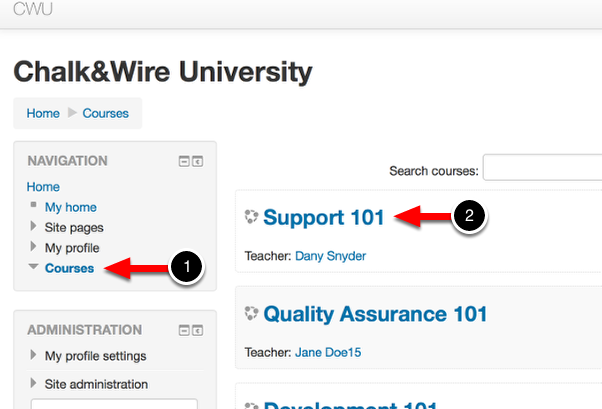

1. Click on Courses.

2. Select the appropriate course.

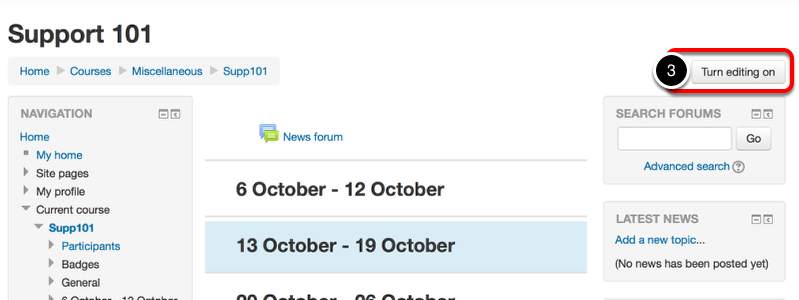

3. Click on the Turn Editing On button within the course.

Step 2: Add an Activity or Resource

Step 2: Add an Activity or Resource

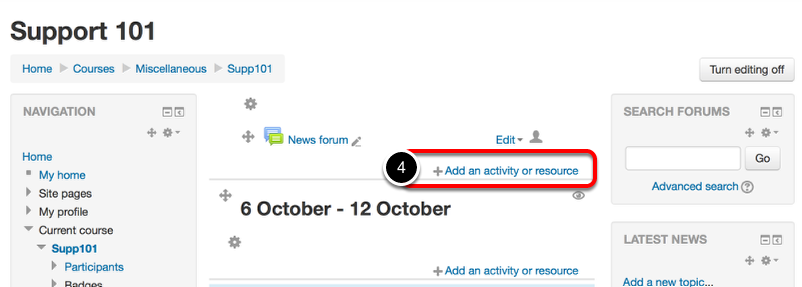

4. Click on the + Add an Activity or Resource button.

On the resulting pop-up window,

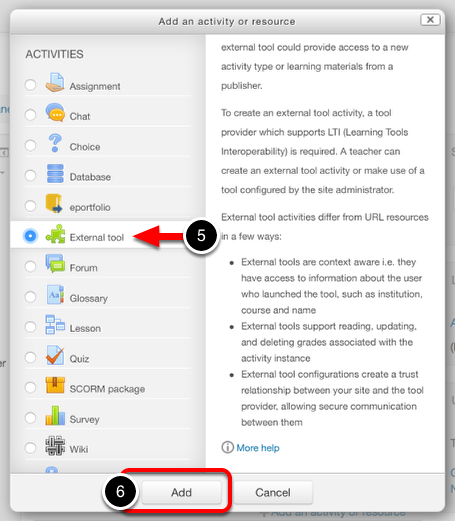

5. Click on External Tool.

6. Click Add.

Step 3: Enter External Tool Information

Step 3: Enter External Tool Information

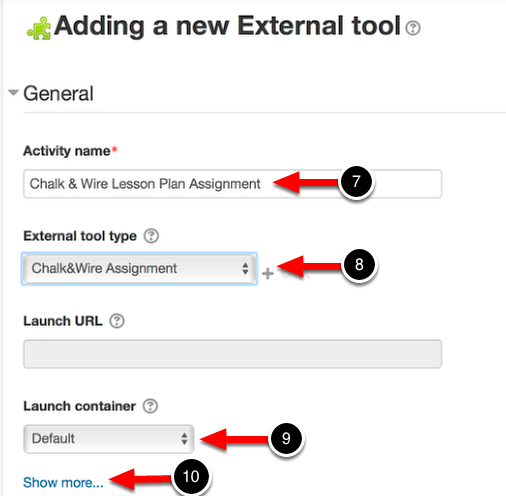

7. Enter an Activity Name for the tool.

8. Select the External Tool Type from the drop-down menu. This is where you will select the external tool that you've already created.

9. Select the Launch Container. Most likely, you will leave this as the default.

10. Click on the Show More... link to reveal more options.

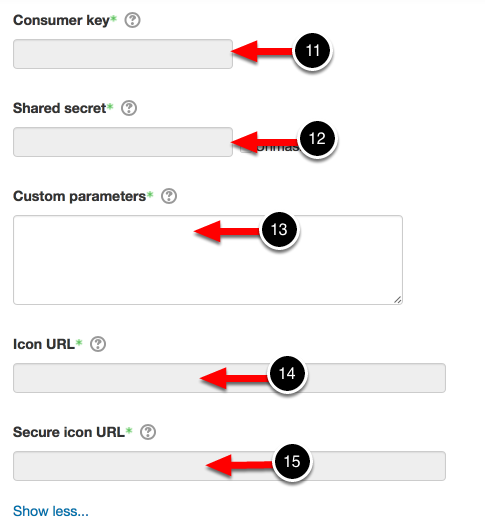

11. Enter your Consumer Key.

12. Enter the Shared Secret.

NOTE: The consumer key and shared secret will be provided to you by Chalk & Wire.

13. Enter the Custom Parameters. If you would like to link the course to a specific portfolio page within Chalk & Wire (recommended) enter the following text:

If you would like to use this Placement in an assignment where the TOC ID is used as part of the title in the Assignment Link, and the student ID is included in the launch parameters, enter:

lis_person_sourcedid=@X@user.batch_uid@X@

If you would like to use this Placement in an assignment where the TOC is selected from a drop-down menu, and the student ID is included in the launch parameters, enter:

toc=select
lis_person_sourcedid=@X@user.batch_uid@X@

If you would like to use this Placement in an assignment that does NOT link to a TOC but instead links to an actual assignment in Chalk & Wire, enter:

toc=assignment

14. Optionally enter an Icon URL. If you would like a Chalk & Wire logo, enter the following text:

http://epcs.chalkandwire.com/epcs/static/images/favicon.ico

15. If you would like to enter a secure icon, enter the URL.

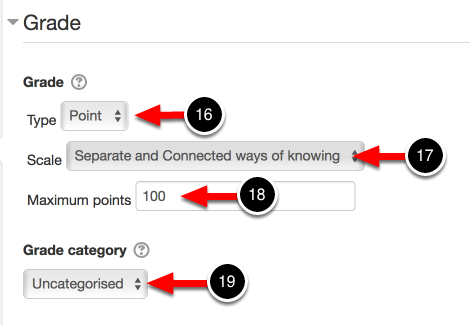

16. Select the Grade Type.

17. Select the Scale.

18. Enter "100" as the Maximum Points.

19. If applicable, choose a Grade Category.

Step 4: Save External Tool

Step 4: Save External Tool

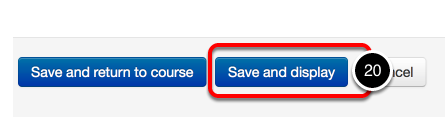

20. Click on the Save and Display button.
